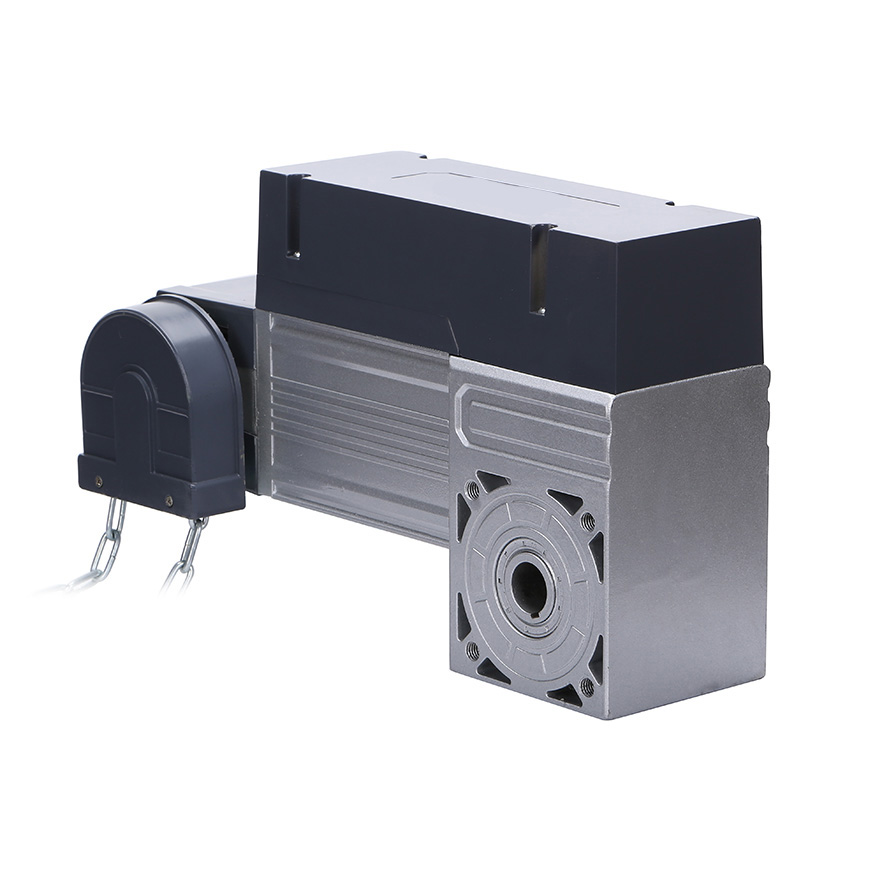

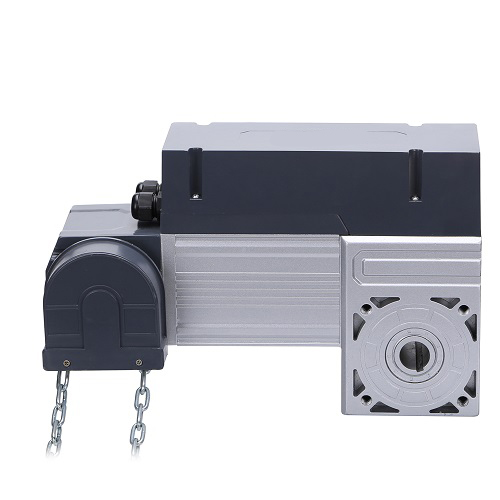

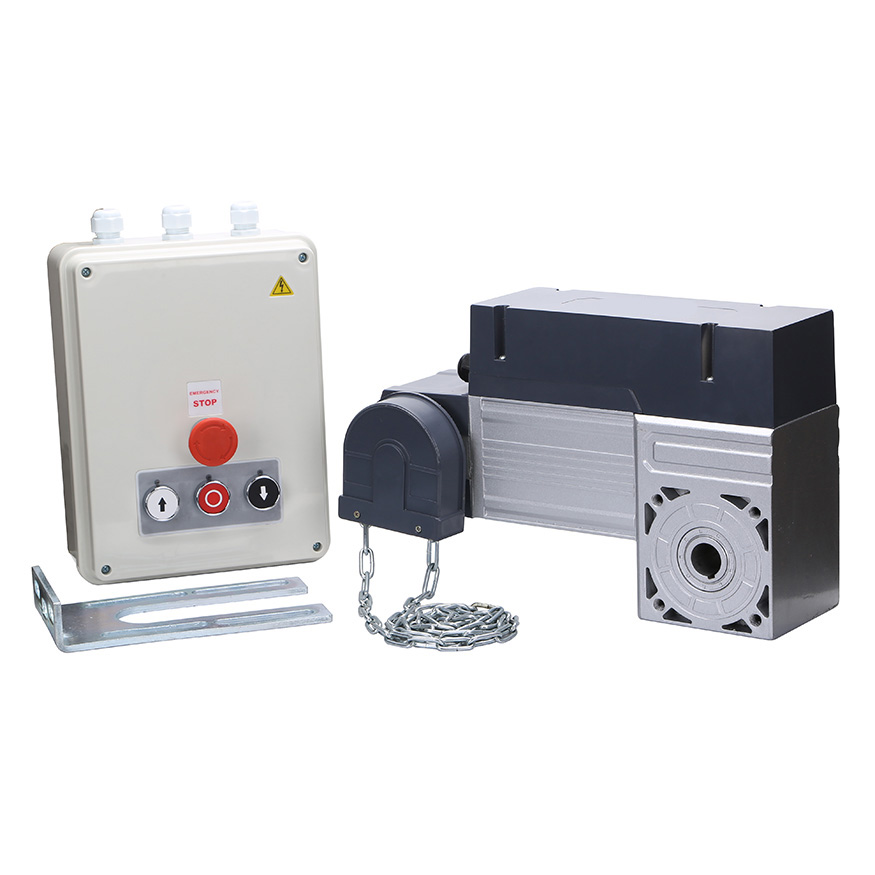

Oil immersed gear, durable aluminum alloy casing. Optional for built in control board or separately control unit, integrated receiver. Keypad / single button interface. Alarm lamp, Photo beam & safety beam interface. Self-locking structure, mechanical limit switch. Standard output shaft aperture dia.25.40 mm, using metal adapter can transfer to dia.40.00 mm. Hand chain manual release systems for emergency purpose.
S.no | Unit Model | INDUS40 |
---|---|---|
1 | Power supply | 220V,50Hz |
2 | Motor Power | 300W |
3 | Max door area | 20 Sq.m |
4 | Max. output torque | 40N.m |
5 | Motor rotate speed | 1400r/min |
6 | Output shaft aperture | Φ25.4 mm |
7 | Limit switch | Mechanical limit switch with micro adjusting device |
8 | Length of manual chain | 8 m |
9 | Working temperature | -20°C~70°C |
10 | Thermal protection temperature | 120°C |
11 | No-loading rotating speed | 23r/min |
12 | Work duty | S2, 15min |
