SWING GATE OPENER
F-600

New style gearbox , quiet and smooth. Soft start and stop ensure a long service lift. The gate leaf reverses or stops when any obstacles are met. Safety further ensured with photocells and flashing light , emergency release key provides manual operation in case of power failure. Easy operation for one remote button: OPEN - STOP — CLOSE. Personal setting of auto closing gate and single gate.

S.no Parameter Value
1 Duty Cycle 25%
2 Power supply 220v AC to the Control Panel
3 Power to motor 24v DC
4 Gate weight 450kg per leaf max.
5 Average power consumption 1.7A
6 Motor rating 40W max
7 Manual override Via override keys supplied
9 Working temperature -10 - +70 degrees

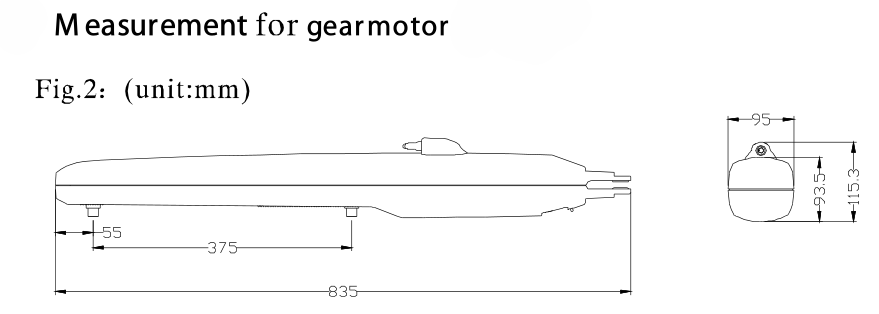

10 Actuator length when retracted 740mm
11 Actuator length fully expandedt 1080mm
11 Maximum stroke 300mm
11 Recommended stroke 300mm Max.
12 Opening/closing running time 12-15 seconds
13 Gates size 4m max
14 PE sensor power 24Vac, 3W max.
15 RF frequency Rolling code 433.92mhz
